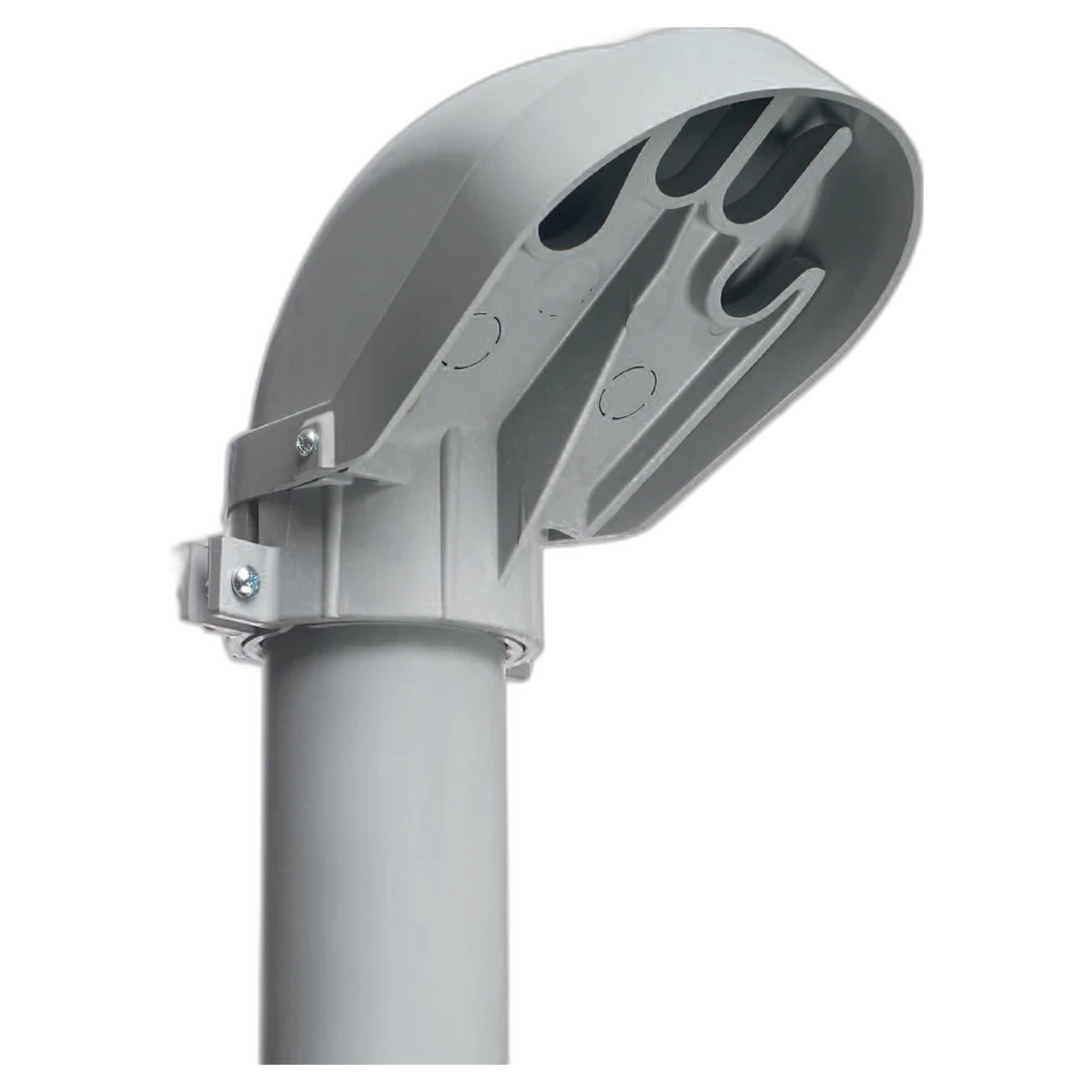

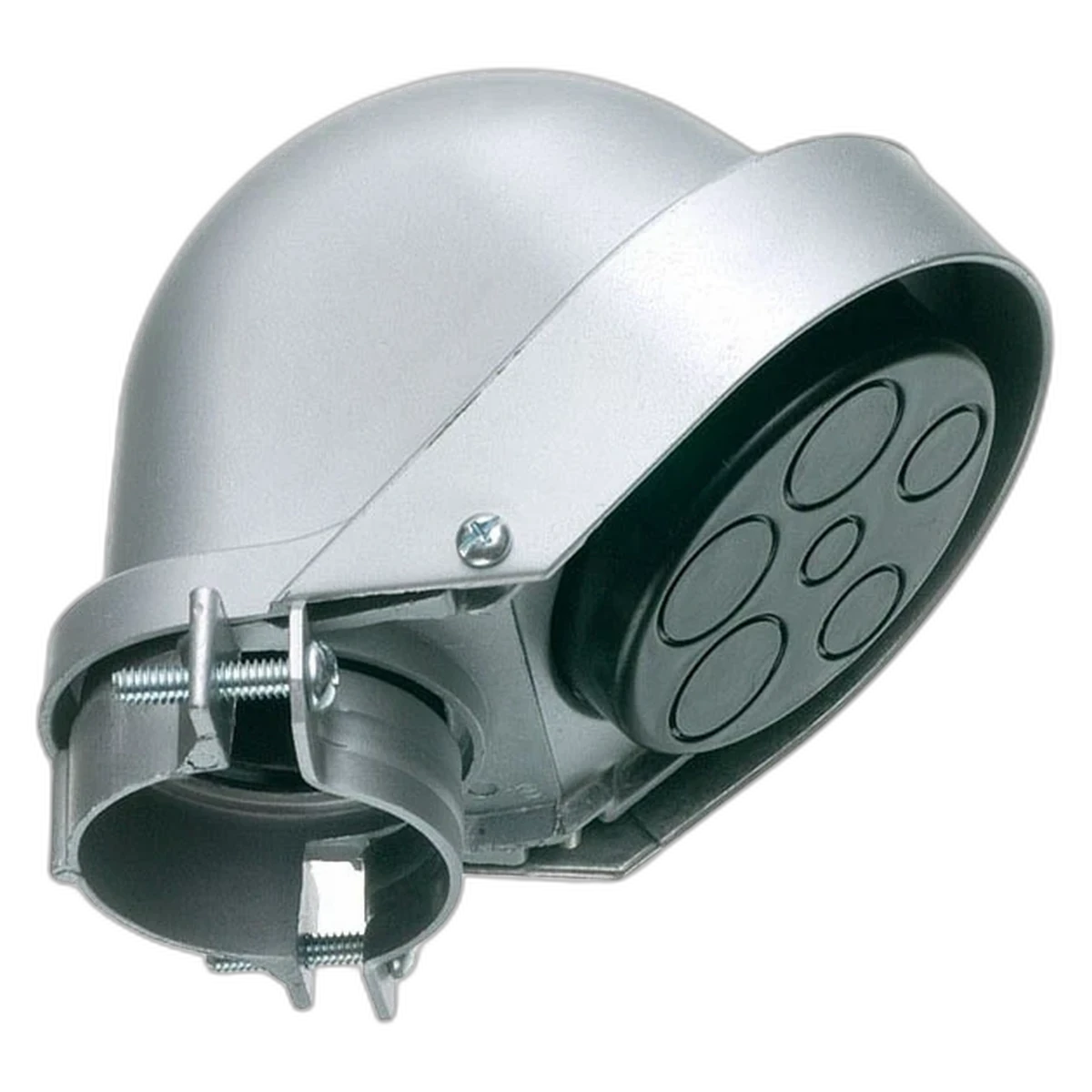

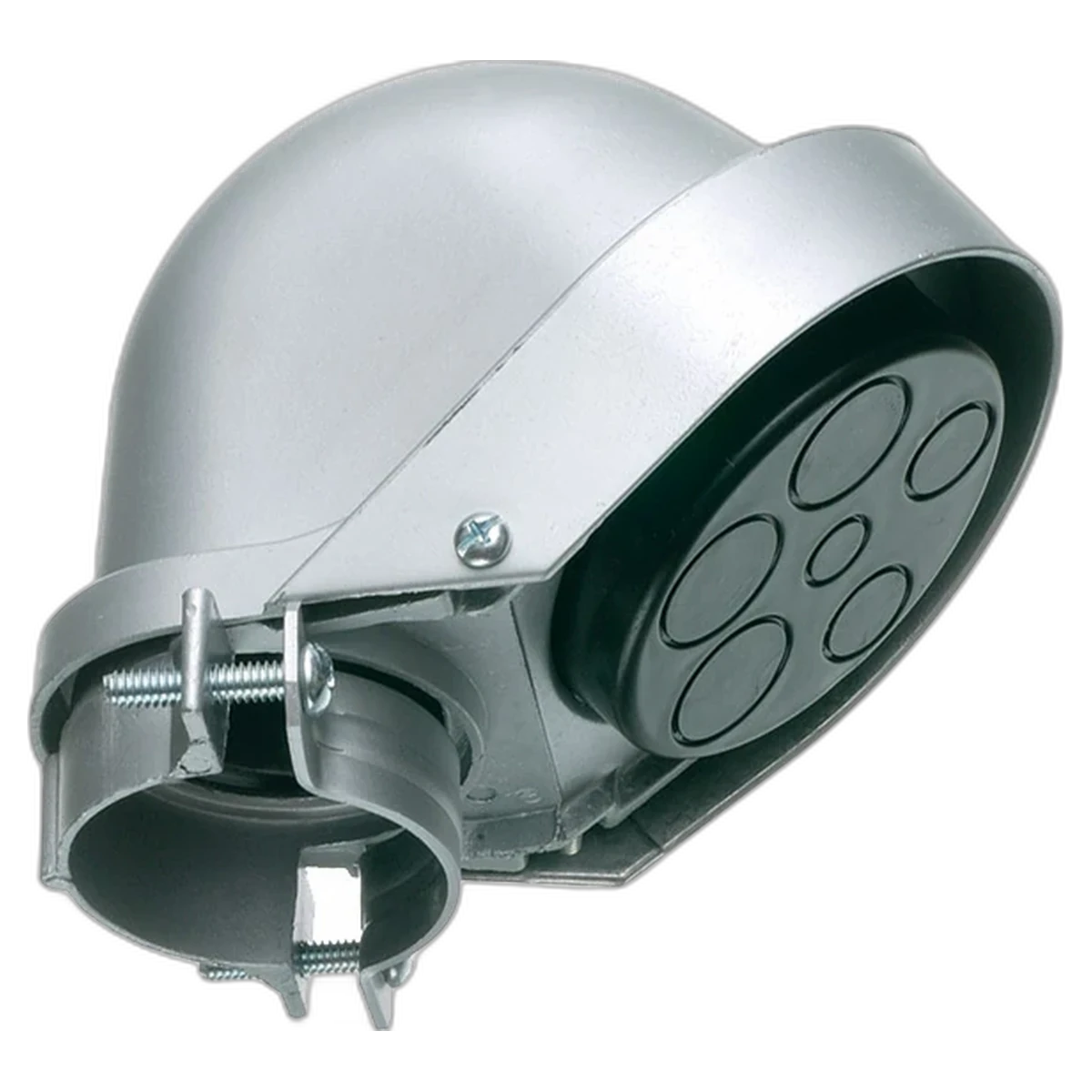

1-1/4 inch aluminum entrance cap with clamp-on design for rigid, IMC, and EMT conduit. Features five pre-drilled holes in two sizes for versatile cable entry applications.
The ARL 143 is a 1-1/4 inch aluminum entrance cap designed for use with rigid, IMC, and EMT conduit fittings. This clamp-on style cap provides a secure, weather-resistant termination point for service entrance applications.
Specifications
- Trade Size: 1-1/4 Inch
- Type: Clamp-On
- Dimensions: 4.46 Inch L x 3.2 Inch H
- Number of Holes: 5
- Hole Sizes: (2) 0.42 Inch, (3) 0.63 Inch
- Material: Aluminum
- Approvals: UL, CSA
Applications
Designed for use on IMC, rigid, and EMT conduit fittings. The multiple hole configuration accommodates various cable sizes and combinations, providing flexibility for different installation requirements.
Category
Rigid Conduit Fittings - Aluminum
Key Features
- 1-1/4 inch trade size clamp-on entrance cap
- Compatible with rigid, IMC, and EMT conduit
- Five pre-drilled holes in two convenient sizes
- UL and CSA approved for safety and reliability
- Durable aluminum construction for long-lasting performance
